Model:K-MC1000

■ FUSION™ combines elevator control with inverter, improving system perfor-mance
■ Meets the EN81-20 standard: UCMP, door lock short detection, door lock bypass function, pit inspection function
■ Custom S-curve, suitable for different applications
■ Project based customization
■ UCMP field test function
■ Ultra short floor operation
■ Intelligent pre-torque
■ Auto counterweight percentage estimation
■ Streamlined parameter setup.
■ Roaming dispatching
■ Shaft absolute position landing system (Optional)

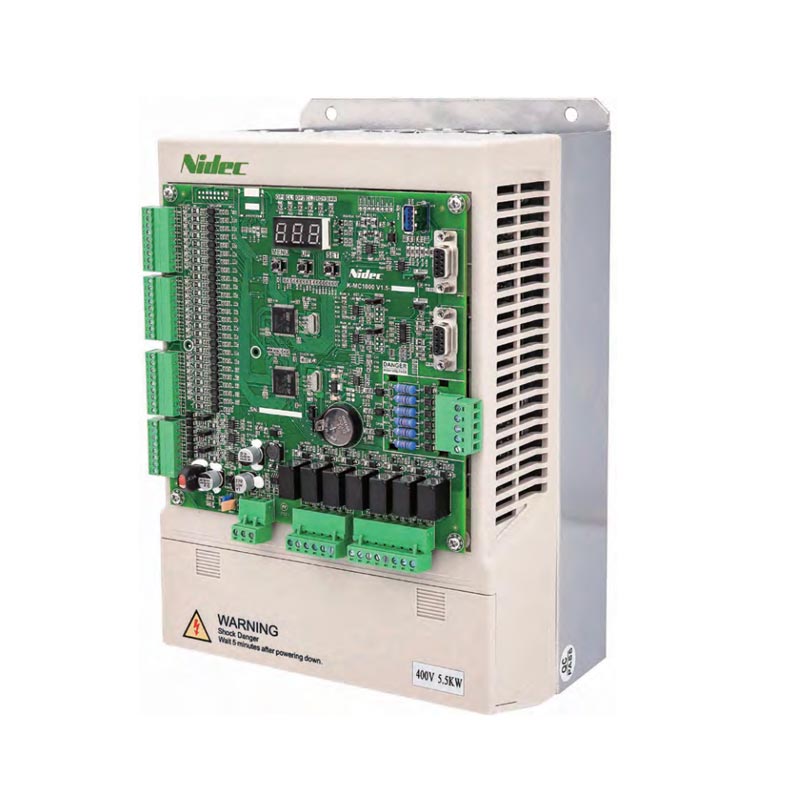

K-MC1000 Integrated Control

K-MC1000 Integrated Elevator Controller

Features

■ FUSION™ combines elevator control with inverter, improving system perfor-mance
■ Meets the EN81-20 standard: UCMP, door lock short detection, door lock bypass function, pit inspection function
■ Custom S-curve, suitable for different applications
■ Project based customization
■ UCMP field test function
■ Ultra short floor operation
■ Intelligent pre-torque
■ Auto counterweight percentage estimation
■ Streamlined parameter setup.
■ Roaming dispatching
■ Shaft absolute position landing system (Optional)

K-MC1000 Integrated Elevator Control

Applications

Elevator type	MRL and MR elevator
Maximum speed	3 m/s
Maximum floor	128 Floors
Single elevator	Selective collection
Roaming dispatching	6 Car group control
DBD	8 Car DBD floor control
Encoder supported	SIN/COS & ABZ
Power range	5.5～75kW

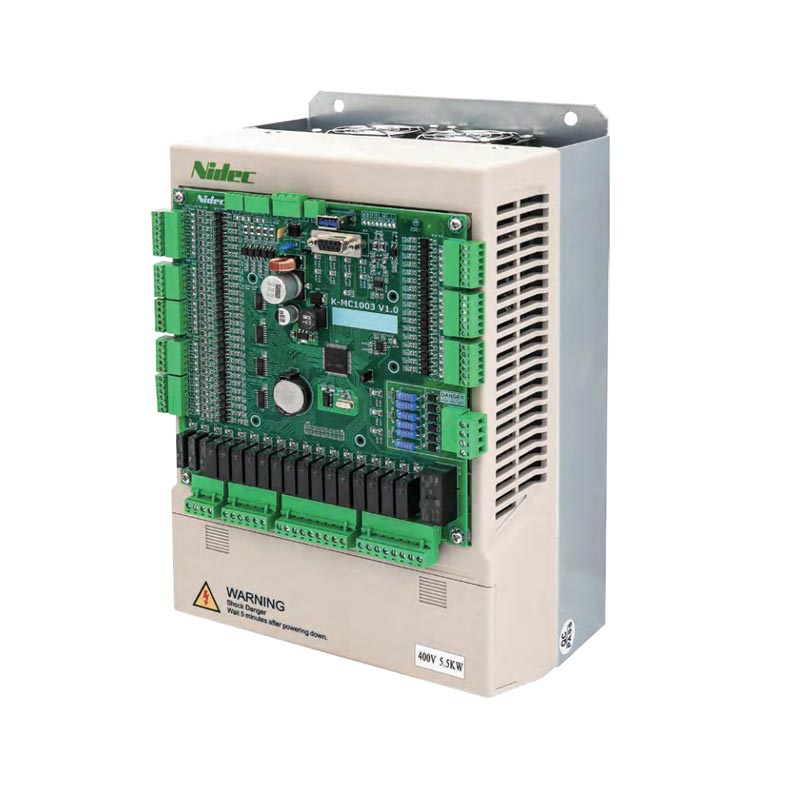

FUSION 3P Integrated Control(Parallel System)

Fusion 3P Integrated Elevator Controller

Features

■ Utilizes the integrated design concept of motor control and elevator function to save space & enhance control functions.
■ Real-time direct to oor S-curve processing to improve eciency and ride quality.Capable to work with short oor as low as 300mm.
■ Field programmable inputs / outputs for improving exibility.
■ Utilize parallel connections for all the wirings, including door interface and car/hall calls.
■ Simple design for low rise applications.
■ Provides quick start up menu for ease of installation.
■ Feature rich system that can interface with various types of door systems.
■ Available display interface format: Binary, BCD code, 7 segments

General Specifications

Features		Descriptions
1. Technical performance characteristics
1.1.	Input voltage range	3P AC 220V~240V-15~10% 3P AC 380V~440V-15~10%
1.2.	Maximum floor	17 Floors
1.3.	Maximum speed	2m/s
1.4.	Duplex	2 car duplex control
2. Peripheral interface characteristics
2.1.	Low voltage input terminals	17-low voltage input
2.2.	Digital input &output multiplexing interface	33 call button & door open / close button signal control interfaces
2.3.	High-voltage input	3-high-voltage input port
2.4.	Digital output	19-relay output port.
2.5.	CAN communication terminal	1 CAN communication terminal
2.6.	Encoder terminal	Sin/cos, incremental encoder interface
