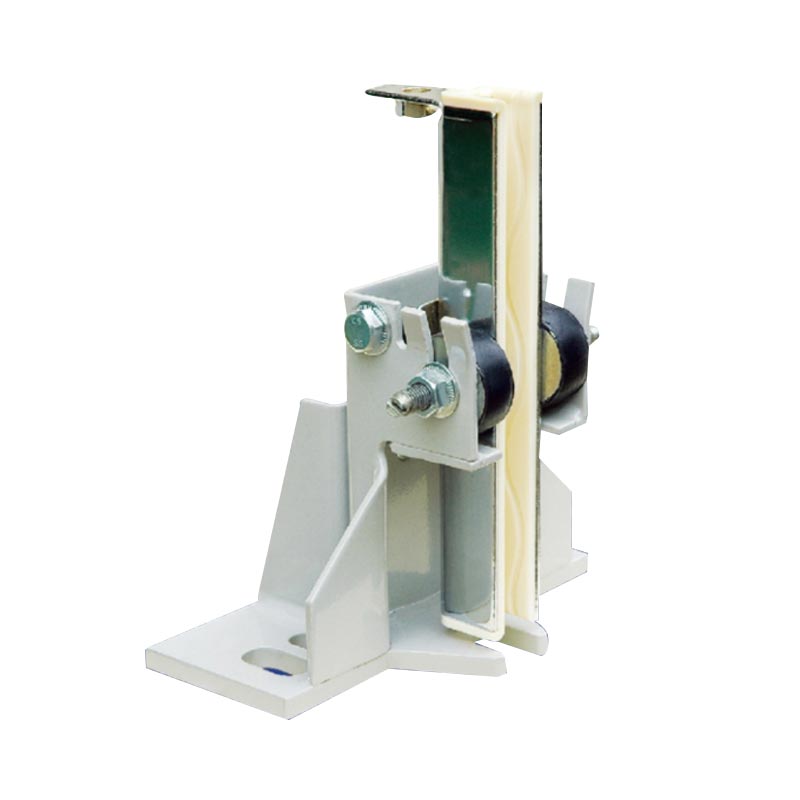

Guide Shoes DX1
Technical parameters
| Rated Speed | ≤2.0m/s |
| Allowable gross mass | ≤1250kg |
|
Pressure on the front surface of guide rail Pressure on the side surface of guide rail |
≤1000N ≤700N |
| Width of guide rails | 9, 10, 16mm |
| Application | Beside counter weight |
| Rated Speed | ≤2.5m/s |
| Counter weight mas | ≤8000kg |
Guide Shoes DX1B
Technical parameters
| Rated Speed | ≤2.5m/s |
| Allowable gross mass | ≤1250kg |
|
Pressure on the front surface of guide rail Pressure on the side surface of guide rail |
≤1000N ≤700N |
| Width of guide rails | 10, 16mm |
Guide Shoes DX2
Technical parameters
| Rated Speed | ≤2.5m/s |
|
Pressure on the front surface of guide rail Pressure on the side surface of guide rail |
≤6500N ≤6500N |
| Width of guide rails | 10, 16mm |
Guide Shoes DX2A
Technical parameters
| Rated Speed | ≤2.0m/s |
| Allowable gross mass | 2000~4000kg |
|
Pressure on the front surface of guide rail Pressure on the side surface of guide rail |
≤2800N ≤3800N |
| Width of guide rails | A=16mm、19mm |
Guide Shoes DX3
Technical parameters
| Rated Speed | ≤1.75m/s |
| Width of hollow guide rail | 10、16.4mm |
Guide Shoes DX3A
Technical parameters
| Rated Speed | ≤1.75m/s |
| Width of guide rails | 5mm |
| For service lift or counter weight |
Guide Shoes DX4
Technical parameters
DX4 SLIDING GUIDE SHOE
| Rated Speed | V≤1.75m/s |
| Width ofguide rails | 10、16mm |
| Width of hollow guide rail | 10、16.4mm |
Guide Shoes DX4A
Technical parameters
DX4A SLIDING GUIDE SHOE
| Rated Speed | V≤1.75m/s |
| Width of hollow guide rail | 10、16.4mm |
Guide Shoes DX4B
Technical parameters
DX4B SLIDING GUIDE SHOE
| Rated Speed | V≤1.75m/s |
| Width of guide rails | 10mm |
Guide Shoes DX4C
Technical parameters
DX4C SLIDING GUIDE SHOE
| Rated Speed | V≤1.75m/s |
| Width of hollow guide rail | 10、16.4mm |
Guide Shoes DX10A
Technical parameters
DX10A SLIDING GUIDE SHOE
| Rated Speed | V≤1.75m/s |
| Allowable gross mass | ≤1250kg |
| Pressure on the front surface of guide rail | ≤1000N |
| Pressure on the side surface of guide rail | ≤650N |
| Width of guide rails | 10,16mm |
Guide Shoes DX12
Technical parameters
DX12 SLIDING GUIDE SHOE
| Rated Speed | ≤2.0m/s |
| Pressure on the front surface of guide rail | ≤6500N |
| Pressure on the side surface of guide rail | ≤6500N |
| Width of guide rail | 10、16mm |
Guide Shoes DX16
Technical parameters
DX16 SLIDING GUIDE SHOE
| Rated Speed | ≤2.0m/s |
| Pressure on the front surface of guide rail | ≤2000N |
| Pressure on the side surface of guide rail: | ≤2000N |
| Allowable gross mass | ≤2000kg |
| Width of guide rail | 9、10、16mm |
Guide Shoes DX17
Technical parameters
DX17 SLIDING GUIDE SHOE
| Rated Speed | V≤0.63m/s |
| Width of guide rail | 19mm |
Guide Shoes DX20
Technical parameters
DX20 SLIDING GUIDE SHOE
| Rated Speed | V≤1.75m/s |
| Allowable gross mass | ≤2000kg |
| Pressure on the front surface ofguide rail | ≤1200N |
| Pressure on the side surface ofguide rail | ≤1000N |
| Width of guide rails | 10、16mm |
Guide Shoes DX21
Technical parameters
DX21 SLIDINGGUIDE SHOE
| Rated Speed | ≤2.0m/s |
| Pressure on the front surface ofguide rail | ≤2000N |
| Pressure onthe side surface ofguide rail | ≤2000N |
| Allowable gross mass: | ≤2000kg |
| Width of guide rail | 10、16mm |
Guide Shoes DX23
Technical parameters
DX23 SLIDING GUIDE SHOE
| Rated Speed | V≤1.75m/s |
| Width of guide rails | 10 mm |
| Width of hollow guide rail | 10、16.4mm |
Guide Shoes DX24
Technical parameters
DX24 SLIDING GUIDE SHOE
| Rated Speed | V≤1.75m/s |
| Width of hollow guide rail | 10、16.4mm |
Guide Shoes DX26
Technical parameters
DX26 SLIDING GUIDE SHOE
| Rated Speed | V≤2.0 m/s |
| Width ofguide rails | 9、10、16mm |
| Width ofhollow guide rail | 16.4mm |
Guide Shoes HDX05
Technical parameters
HDX05 SLIDING GUIDE SHOE
| Pressure on the front surface of guide rail | 3000N |
| Pressure on the side surface of guide rail | 2500N |
| Width of guide rail | 16mm |
Guide Shoes HDX06
Technical parameters
HDX06 SLIDING GUIDE SHOE
| Rated Speed | V≤2.5m/s |
| Allowable gross mass | ≤1650kg |
| Width of guide rail | 10、16mm |
Guide Shoes HDX09A
Technical parameters
HDX09A SLIDING GUIDE SHOE
| Rated Speed | V≤2.0m/s, Q≤1350kg |
| Width of guide rail | 10、16mm |
Guide Shoes HDX09C
Technical parameters
HDX09B SLIDING GUIDE SHOE
| Rated Speed | V≤2.0m/s,Q≤1350kg |
| Width of guide rail | 16mm |
Guide Shoes HDX10
Technical parameters
HDX10 SLIDING GUIDE SHOE
| Rated Speed | V≤2.5m/s |
| Allowable gross mass | ≤1650kg |
| Width of guide rail | 10、16mm |
