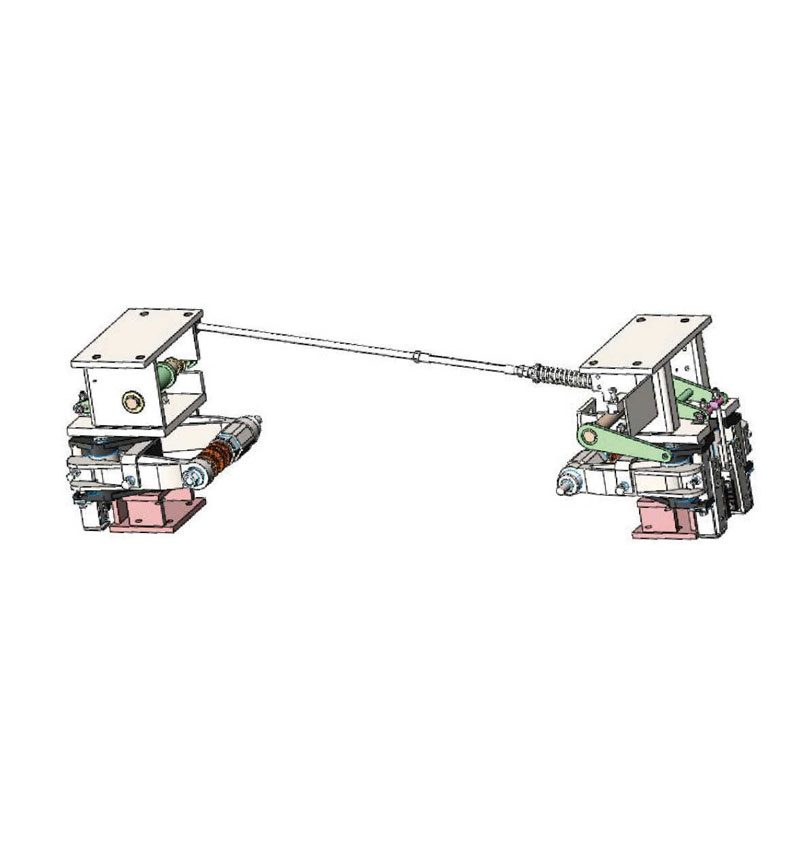

Safety Brake Device JXAQ1
JXAQ1 Safety Brake Device
| NO. | Certification |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
Rail lubrication |
| 1 | GB CE | 0.25~2.5 | 1800~4500 | 10、15.88、16 | Yes |
| 2 | GB | 1.0~4.0 | 2100~4500 | 9、10、15.88、16 | No |
| 3 | CE | ≤4.0 | 1800~4500 | 9、10、15.88、16 |
Notes:Please mention the distance of the guide rail and left & right layout on your PO.
Safety Brake Device JXAQ2
JXAQ2 Safety Brake Device
| No. |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
Rail lubrication |
| 1 | 0.25~2.50 | 3500~8000 | 15.88、16、19 | Yes |
| 2 | 2.50~4.00 | 3600~6000 | No |
Notes:Please mention the distance of the guide rail and left & right layout on your PO.
Safety Brake Device JXAQ32KB
JXAQ32KB Safety Brake Device
| NO. |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
| 1 | 0.25~2.0 | 800~2800 | 9、10、15.88、16 | 110 | 30 | 100 | 70 |
| 2 | 90 | 35 | 140 | 110 |
Notes:Please mention the distance of the guide rail and left & right layout on your PO.
Safety Brake Device JXAQS8
JXAQS8 Safety Brake Device
| NO. |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
Car botton interface and pulling point position | ||
| A | B | C | ||||
| (mm) | (mm) | (mm) | ||||
| 1 | ≤0.63 | ≤12000 | 16 | 225 | 240 | 261 |
| 230 | ||||||
| 2 | ||||||
| 225 | 210 | 231 | ||||
| 3 | ||||||
| 4 | 212 | |||||
Notes:Please mention the distance of the guide rail and left & right layout on your PO.
Safety Brake Device AQG8000
AQG8000 Safety Brake Device
| No. |
V(m/s) Rated speed |
(P+Q)(kg) Permissible mass |
K(mm) Rail width |
Rail lubrication |
| 1 | 2.5~10.5 | 3800~10000 | 15.88、16、19 | No |
Notes:Please mention the distance of the guide rail and left & right layout on your PO.
