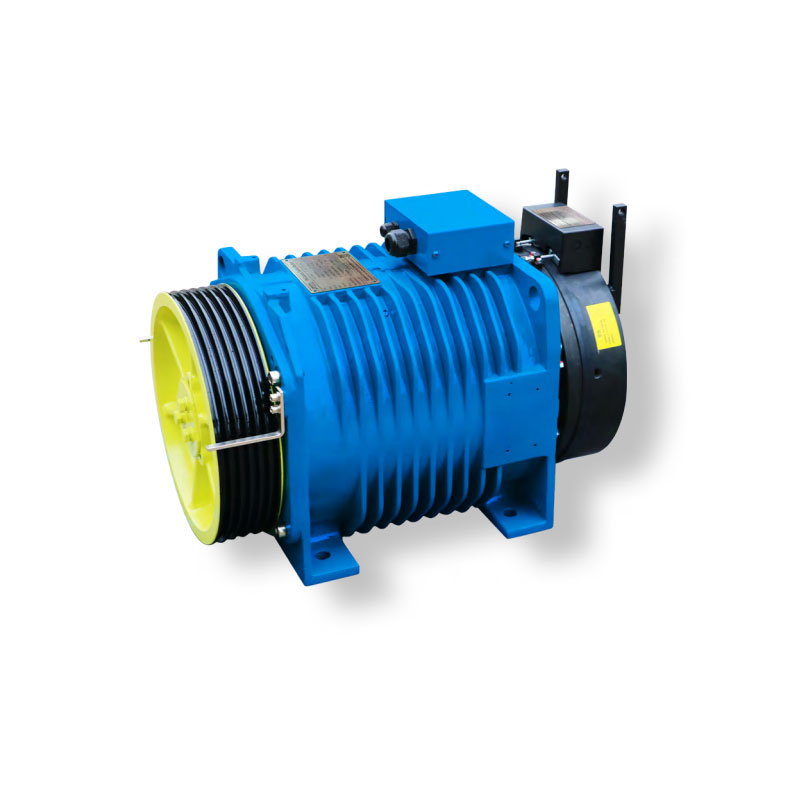

Model:WR-D

■ Capacity: 450kg-1000kg
■ Wrap: Single wrap
■ Rotor: Internal rotor
■ Undercut: U
■ Foot Pad Flatness: < 0.5mm
■ Protection Rating: IP41
■ Insulation Class: F
■ Poles: 20
■ Duty Cycle: S5-40％
■ Motor Rated Voltage: AC380V
■ Brake: Plate
■ Picking/Holding Voltage: DC110V

WR-D series machines

Capacity	450kg-1000kg
Wrap	Single Wrap
Rotor	Internal rotor
Undercut	U
Foot Pad Flatness	< 0.5mm
Protection Rating	IP41
Insulation Class	F
Poles	20
Duty Cycle	S5-40％
Motor Rated Voltage	AC380V
Brake	Plate
Picking/Holding Voltage	DC110V

Full-wave rectification power source for brake

Model	Capacity kg	Elevator Speed m/s	Rated Output KW	Rated Current A	Rated Speed rpm	Frequency Hz	Sheave Diameter mm	Torque Nm	Ropes	Groove Dist. mm	Cut Angle	Groove Angle	Roping	Shaft Load kg	Handle Wheel	Remote Release	Inertia kg m^2	Weight kg
WR-450-100-D	450	1.0	2.7	8.0	119	19.9	320	218	4-Φ8	12	β=90°	γ=30°	2:1	1500	N	Y/N	0.32	150
WR-450-150-D		1.5	4.3	12.5	179	29.8		228
WR-450-160-D		1.6	4.6		191	31.8
WR-450-175-D		1.75	5.0		209	34.8
WR-450-200-D		2.0	5.7	14.3	239	39.8
WR-630-100-D	630	1.0	3.8	9.5	119	19.9	320	305	5-Φ8	12	β=90°	γ=30°	2:1	2200	N	Y/N	0.43	195
WR-630-150-D		1.5	6.0	16.0	179	29.8		320
WR-630-160-D		1.6	6.4		191	31.8
WR-630-175-D		1.75	7.0		209	34.8
WR-630-200-D		2.0	8.0	18.0	239	39.8
WR-800-100-D	800	1.0	4.8	12.0	119	19.9	320	387	6-Φ8	12	β=90°	γ=30°	2:1	2200	N	Y/N	0.45	205
WR-800-150-D		1.5	7.6	21.0	179	29.8		406
WR-800-160-D		1.6	8.1		191	31.8
WR-800-175-D		1.75	8.9		209	34.8
WR-800-200-D		2.0	10.1	24.0	239	39.8
WR-1000-100-D	1000	1.0	6.1	14.5	119	19.9	320	484	6-Φ8	12	β=90°	γ=30°	2:1	2500	N	Y/N	0.46	215
WR-1000-150-D		1.5	9.5	25.5	179	29.8		507
WR-1000-160-D		1.6	10.1		191	31.8
WR-1000-175-D		1.75	11.1		209	34.8
WR-1000-200-D		2.0	12.7	30.5	239	39.8

Click to view the image

Notes:
1.The brake picking/holding voltage is DC110V. Voltage switch is not necessary.
2.The balance ratio is 0.45~0.5.
3.Regen drive application, please consult with us, then order with notes.
