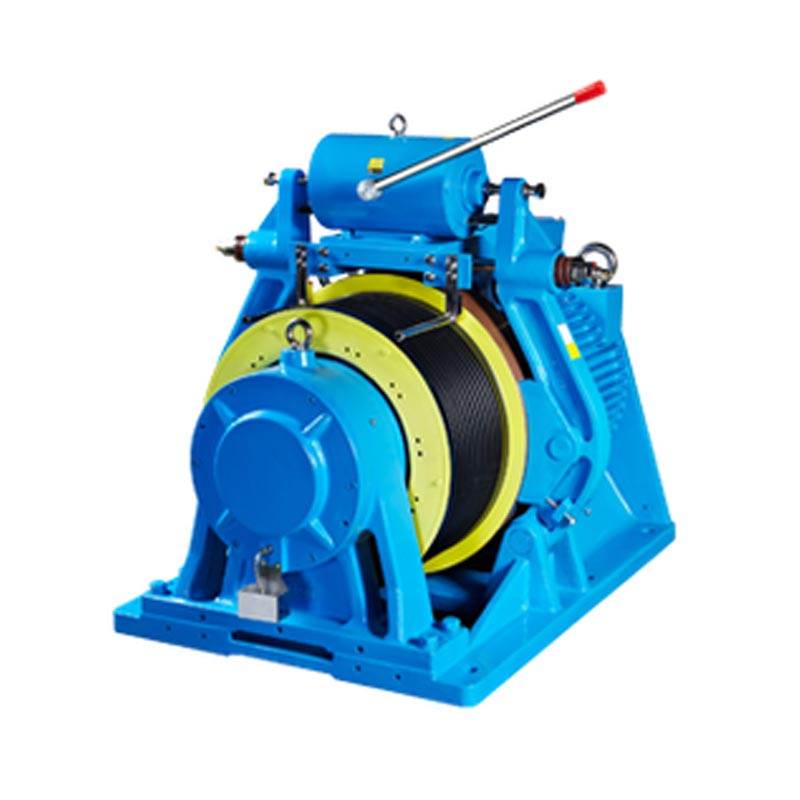

WTYF2/SWTYF2 MR High Speed Elevator

Model	Capacity kg	Elevator Speed m/s	Rated Output KW	Rated Current A	Rated Speed rpm	Frequency Hz	Sheave Diameter mm	Poles 2p	Torque Nm	Ropes	Groove Dist. mm	Cut Angle	Groove Angle	Roping	Shaft Load kg	Handle Wheel	Remote Release	Inertia kg m^2	Weight kg
WTYF2-1000-300	1000	3.0	20.8	44.0	220	36.7	520	20	899	4-Φ13	17	β=0°	γ=25°	2:1	12,000	Y	N	10.10	1,050
WTYF2-1000-350		3.5	24.2	51.0	257	42.8
WTYF2-1000-400		4.0	27.7	60.0	294	49.0
WTYF2-1150-300	1150	3.0	23.9	51.0	220	36.7	520	20	1,034	4-Φ13	17	β=0°	γ=25°	2:1	12,000	Y	N	10.10	1,050
WTYF2-1150-350		3.5	27.8	58.0	257	42.8
WTYF2-1150-400		4.0	31.8	66.0	294	49.0
WTYF2-1250-300	1250	3.0	25.9	56.0	220	36.7	520	20	1,124	4-Φ13	17	β=0°	γ=25°	2:1	12,000	Y	N	10.90	1,150
WTYF2-1250-350		3.5	30.3	64.0	257	42.8
WTYF2-1250-400		4.0	34.6	73.0	294	49.0
WTYF2-1350-300	1350	3.0	28.0	60.0	220	36.7	520	20	1,214	4-Φ13	17	β=0°	γ=25°	2:1	12,000	Y	N	10.90	1,150
WTYF2-1350-350		3.5	32.7	69.0	257	42.8
WTYF2-1350-400		4.0	37.4	78.0	294	49.0
WTYF2-1600-300	1600	3.0	33.2	70.0	220	36.7	520	20	1,439	4-Φ13	17	β=0°	γ=25°	2:1	12,000	Y	N	12.20	1,250
WTYF2-1600-350		3.5	38.7	80.0	257	42.8
WTYF2-1600-400		4.0	44.3	92.0	294	49.0

Click to view the image

Notes:
1.Brake are AC220V and DC220V optional, other brake voltage please consult engineers.
2.AC brake is equipped with controller, step-down transformer is not required. DC brake requires step-down transformer in cabinet to guarantee holding voltage is 50% of picking voltage.

Model	Capacity kg	Elevator Speed m/s	Rated Output KW	Rated Current A	Rated Speed rpm	Frequency Hz	Sheave Diameter mm	Poles 2p	Torque Nm	Ropes	Groove Dist. mm	Cut Angle	Groove Angle	Roping	Shaft Load kg	Handle Wheel	Remole Release	Inertia kg m^2	Weight kg
WTYF2-2000-300	2000	3.0	41.5	92	220	36.7	520	20	1799	6-Φ13	17	β=0°	γ=25°	2:1	15,000	N	N	18.8	1550
WTYF2-2000-350		3.5	48.4	106	257	42.9
WTYF2-2000-400		4.0	55.3	121	294	49.0
WTYF2-2500-300	2500	3.0	51.9	121	179	47.7	640	32	2767	5-Φ16	20	β=0°	γ=25°	2:1	20,000	N	N	29.5	2400
WTYF2-2500-350		3.5	60.5	140	209	55.7
WTYF2-2500-400		4.0	69.2	162	239	63.7
WTYF2-3000-300	3000	3.0	62.3	145	179	47.7	640	32	3320	6-Φ16	20	β=0°	γ=25°	2:1	20,000	N	N	31	2480
WTYF2-3000-350		3.5	72.6	170	209	55.7
WTYF2-3000-400		4.0	83.0	195	239	63.7
WTYF2-3600-300	3600	3.0	74.7	179	179	47.7	640	32	3985	6-Φ16	20	β=0°	γ=25°	2:1	20,000	N	N	34.1	2600
WTYF2-3600-350		3.5	87.2	195	209	55.7
WTYF2-3500-400		4.0	99.6	236	239	63.7
WTYF2-4000-300	4000	3.0	76.1	178	179	47.7	640	32	4058	6-Φ16	20	β=0°	γ=25°	2:1	20,000	N	N	34.1	2600
WTYF2-4000-350		3.5	88.8	208	209	55.7
WTYF2-4000-400		4.0	101.5	240	239	63.7
SWTYF2-1000-100	1000	3.0	19.6	56	110	18.4	520	20	1699	6-Φ13	17	β=0°	γ=25°	1:1	15,000	N	N	18.8	1550
SWTYF2-1000-350		3.5	22.9	56	129	21.4
SWTVF2-1000-400		4.0	26.1	64	147	24.5
SWTYF2-1000-500		5.0	32.7	88	184	30.6
SWTYF2-1000-600		6.0	39.2	88	220	36.7
SWTYF2-1150-300	1150	3.0	22.5	64	110	18.4	520	20	1953	6-Φ13	17	β=0°	γ=25°	1:1	15,000	N	N	18.8	1550
SWTYF2-1150-350		3.5	26.3	64	129	214
SWTYF2-1150-400		4.0	30.1	74	147	24.5
SWTYF2-1150-500		5.0	37.6	102	184	30.6
SWTYF2-1150-600		6.0	45.1	102	220	36.7
SWTYF2-1250-100	1250	3.0	24.5	70	110	18.4	520	20	2123	6-Φ18	7	β=0°	γ=25°	1:1	15,000	N	N	18.8	1550
SWTYF2-1250-350		3.5	28.6	70	129	21.4
SWTVF2-1250-400		4.0	32.7	80	147	24.5
SWTYF2-1250-500		5.0	40.9	98	149	39.8	640	32	2613	5-Φ16	20				20,000			29.5	2400
SWTYF2-1250-600		6.0	49.0	112	179	47.8
SWTYF2-1350-300LS	1350	3.0	26.5	64	90	23.9	640	32	2822	5-Φ16	20	β=0°	γ=25°	1:1	20,000	N	N	29.5	2400
SWTYF2-1350-350LS		3.5	30.9	76	104	27.9
SWTYF2-1350-400LS		4.0	35.3	86	119	31.8
SWTYF2-1350-500		5.0	44.1	105	149	39.8
SWTYF2-1350-600		6.0	52.9	120	179	47.8
SWTYF2-1600-300	1600	3.0	31.4	75	90	23.9	640	32	3345	6-Φ16	20	β=0°	γ=25°	1:1	20,000	N	N	31	2480
SWTYF2-1600-350		3.5	36.6	88	104	27.9
SWTYF2-1600-400		4.0	41.8	100	119	31.8
SWTYF2-1600-500		5.0	52.3	124	149	39.8
SWTYF2-1600-600		6.0	62.7	146	179	47.8
SWTYF2-1600-700		7.0	73.2	160	200	53.2	670		3502						30,000	N	N	37.8	3050
SWTYF2-1600-800		8.0	83.7	180	228	60.8
SWTYF2-2000-300	2000	3.0	39.2	90	86	22.8	670	32	4377	6-Φ16	20	β=0°	γ=25°	1:1	30,000	N	N	37.8	3050
SWTYF2-2000-350		3.5	45.7	102	100	26.6
SWTYF2-2000-403		4.0	52.3	120	114	30.4
SWTYF2-2000-500		5.0	65.3	148	143	38.0
SWTYF2-2000-500		6.0	78.4	180	171	45.6
SWTYF2-2000-700		7.0	91.5	210	200	53.2
SWTYF2-2000-800		8.0	104.5	235	228	60.8

Click to view the image

Capacity(kg)	Elevator Speed(m/s)	Roping	D1	D2	D3	D4	D5	OP	W1	W2	W3	W4	H1	H2	H3	Φd2
2000	3.0-4.0	2:1	326.5	145	530	794.5	1000	520	450	670	750	965	1000	360	40	26
2500-4000	3.0-4.0	2:1	411.5	340	640	1200	1350	640	260	822	912	1130	1200	444	50	34
1000-1150	3.0-6.0	1:1	326.5	145	530	794.5	1000	520	450	670	750	965	1000	360	40	26
1250	3.0-4.0
1250	5.0-6.0	1:1	411.5	340	640	1200	1350	640	260	822	912	1130	1200	444	50	34
1350-1600	3.0-6.0
1600	7.0-8.0	1:1	427.5	450	670	1340	1600	670	286	870	965	1104	1210	454	50	34
2000	3.0-8.0

Notes:
1.WTYF2-4000 series balance ratio is 0.45~0.5.
2.AC brake is equipped with controller, step-down transformer is not required. DC brake requires step-down transformer in cabinet to guarantee holding voltage is 50% of picking voltage.
