Gearless Traction Machine

Nidec high quality Gearless Traction Machine is one of the core components of modern elevator technology. It is directly driven by an advanced permanent magnet synchronous motor without the need for a traditional reduction gearbox, achieving smooth operation with high efficiency and low noise. This design not only reduces the wear of mechanical components and improves the reliability and service life of the elevator, but also significantly reduces energy consumption and maintenance costs. Gearless traction machines have become an ideal choice for elevator systems in modern high-rise buildings due to their excellent performance and environmental protection advantages.
  • WJC-T(400MM) MRL Passenger Elevator

    WJC-T(400MM) MRL Passenger Elevator

    As the professional manufacture, we would like to provide you WJC-T(400MM) MRL Passenger Elevator. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.
    ■ Capacity: 630kg-1050kg
    ■ Roping: 2:1
    ■ Elevator Speed: 1.0m/s – 1.75m/s
    ■ Sheave: 400mm
    ■ Wrap: Single Wrap
    ■ Undercut: U
    ■ Foot Pad Flatness: ＜0.5mm
    ■ Protection Rating: IP41
    ■ Insulation Class: F
    ■ Poles: 40
    ■ Brake: Block
    ■ Picking/Holding Voltage: DC110V
    View More
  • WE(400MM) MRL Passenger Elevator

    WE(400MM) MRL Passenger Elevator

    Nidec is China manufacturer & supplier who mainly produces WE(400MM) MRL Passenger Elevator, Elevator Control System with many years of experience. Hope to build business relationship with you.
    ■ Capacity: 272kg -680kg
    ■ Wrap: Single Wrap
    ■ Rotor: External Rotor
    ■ Undercut: U
    ■ Foot Pad Flatness: < 0.5mm
    ■ Protection Rating: IP41
    ■ Insulation Class: F
    ■ Poles :30
    ■ Duty Cycle: S5-40％
    ■ Motor Rated Voltage: AC380V
    ■ Brake: Block
    ■ Picking/Holding Voltage: DC110V
    View More
  • WR-D(240/320mm) MRL Passenger Elevator

    WR-D(240/320mm) MRL Passenger Elevator

    As the professional manufacturer, we would like to provide you WR-D(240/320mm) MRL Passenger Elevator. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.
    ■ Capacity: 450kg-1000kg
    ■ Wrap: Single wrap
    ■ Rotor: Internal rotor
    ■ Undercut: U
    ■ Foot Pad Flatness: < 0.5mm
    ■ Protection Rating: IP41
    ■ Insulation Class: F
    ■ Poles: 20
    ■ Duty Cycle: S5-40％
    ■ Motor Rated Voltage: AC380V
    ■ Brake: Plate
    ■ Picking/Holding Voltage: DC110V
    View More
  • WR MRL Passenger Elevator 1150kg-1350kg

    WR MRL Passenger Elevator 1150kg-1350kg

    As the professional manufacturer, we would like to provide you WR MRL Passenger Elevator 1150kg-1350kg. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future. KDS provides high quality and reliable products and professional solutions to customers in China and around the world.
    ■ Capacity: 1150kg-1350kg
    ■ Wrap: Single wrap
    ■ Rotor: Internal rotor
    ■ Undercut: U
    ■ Foot Pad Flatness: < 0.5mm
    ■ Protection Rating: IP40
    ■ Insulation Class: F
    ■ Poles: 20
    ■ Duty Cycle: S5-40％
    ■ Motor Rated Voltage: AC380V
    ■ Brake: Plate
    ■ Picking/Holding Voltage: DC110V
    View More
  • WR MRL Passenger Elevator 1600kg-2000kg

    WR MRL Passenger Elevator 1600kg-2000kg

    As the professional manufacturer, we would like to provide you WR MRL Passenger Elevator 1600kg-2000kg. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future. KDS provides high quality and reliable products and professional solutions to customers in China and around the world.
    ■ Capacity: 1600kg-2000kg
    ■ Wrap: Single wrap
    ■ Rotor: Internal rotor
    ■ Undercut: U
    ■ Foot Pad Flatness: < 0.5mm
    ■ Protection Rating: IP40
    ■ Insulation Class: F
    ■ Poles: 20
    ■ Duty Cycle: S5-40％
    ■ Motor Rated Voltage: AC380V
    ■ Brake: Plate
    ■ Picking/Holding Voltage: DC110V
    View More
  • WT-E MRL Passenger Elevator

    WT-E MRL Passenger Elevator

    As the professional manufacturer, we would like to provide you WT-E MRL Passenger Elevator. And we will offer you the best after-sale service and timely delivery. Sincerely look forward to cooperating with you in the near future.
    ■ Capacity: 630kg-1600kg
    ■ Wrap: Single wrap
    ■ Rotor: External Rotor
    ■ Undercut: U
    ■ Foot Pad Flatness: < 0.5mm
    ■ Protection Rating: IP40
    ■ Insulation Class: F
    ■ Poles: 30
    ■ Duty Cycle: S5-40％
    ■ Motor Rated Voltage: AC380V
    ■ Brake: Drum
    ■ Brake Voltage: DC110V
    View More

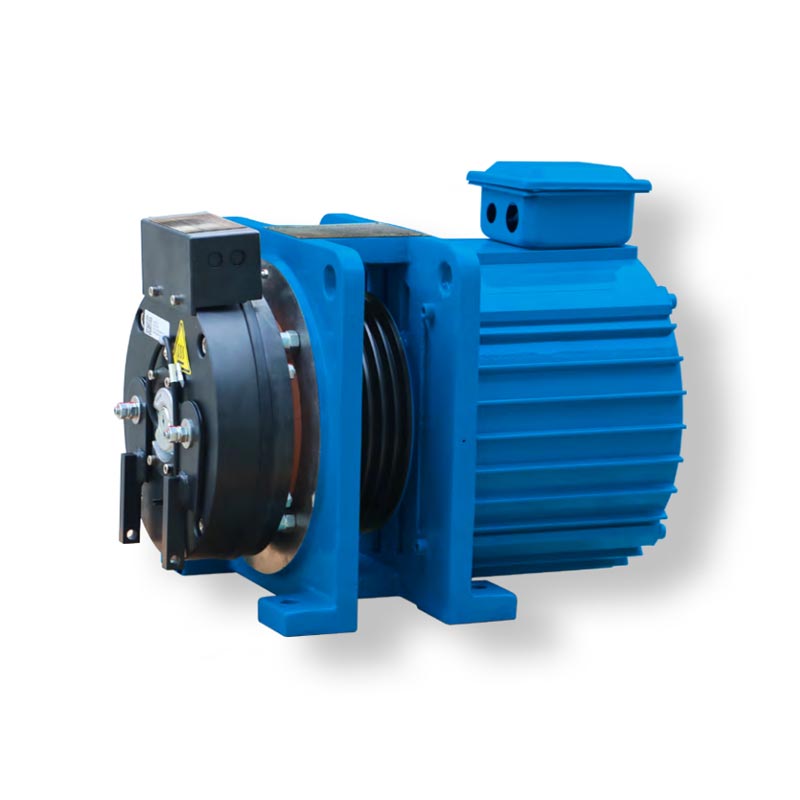

  • VL-D MRL Passenger Elevator

    VL-D MRL Passenger Elevator

    As the professional manufacturer, we would like to provide you VL-D MRL Passenger Elevator. KDS provides Nidec with a strong Asia base for the design, manufacturing and sales of products for domestic and international markets.
    ■ Capacity: 250kg-450kg
    ■ Wrap: Single wrap
    ■ Rotor: Internal rotor
    ■ Undercut: U
    ■ Foot Pad Flatness: < 0.5mm
    ■ Protection Rating: IP40
    ■ Insulation Class: F
    ■ Poles: 16
    ■ Duty Cycle: S5-25％
    ■ Brake: Plate
    ■ Picking/Holding Voltage: DC110V
    View More
